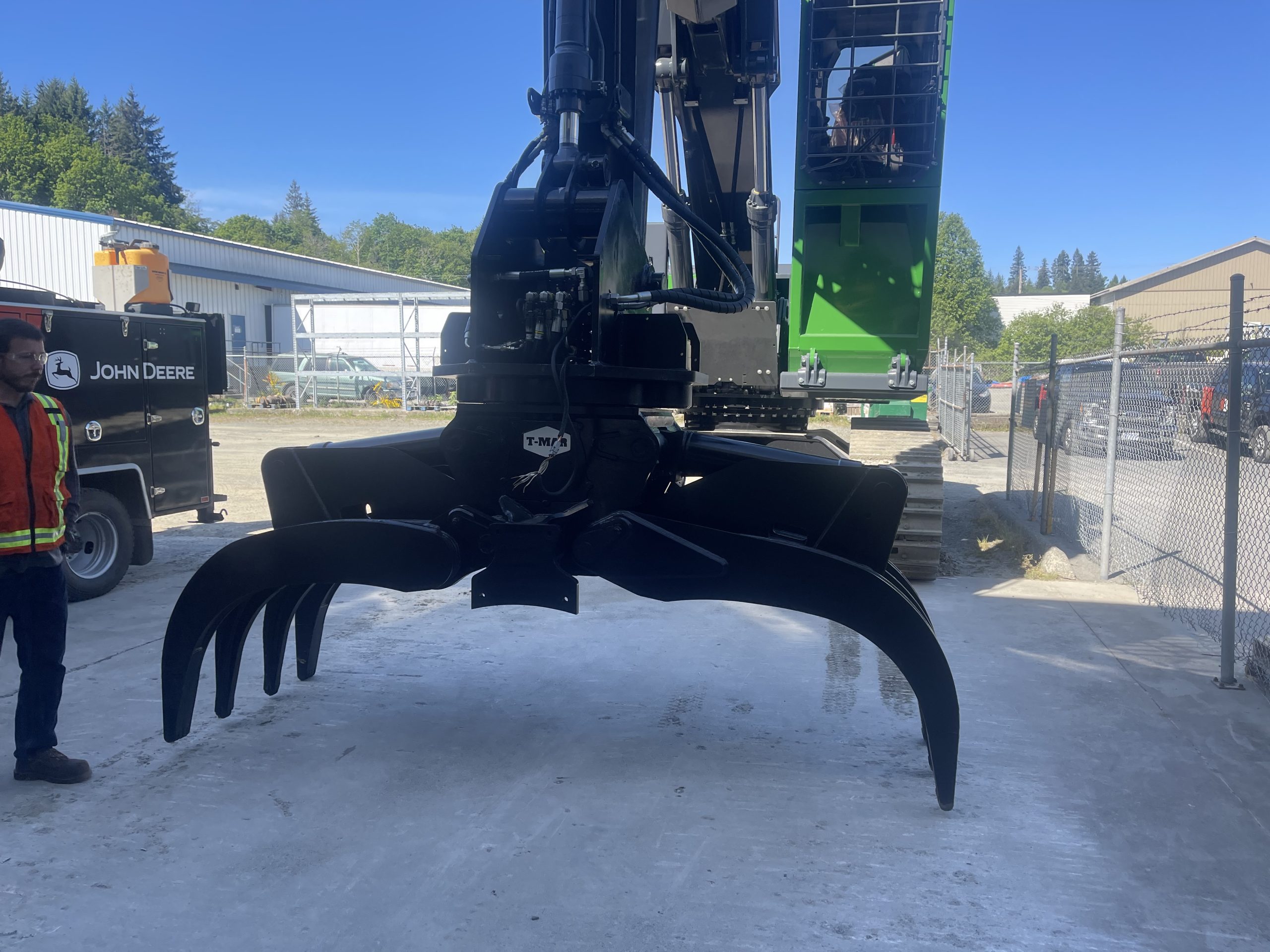

POWERCLAM GRAPPLE
The T-MAR PowerClam Grapple isn’t your average log grapple—it’s engineered to dominate the toughest forestry challenges. Built from 100QT “T1” alloy steel, reinforced with induction-hardened pins and high-strength aluminum-bronze bushings, this grapple delivers strength, durability, and precision that loggers can rely on.
From land cleanup and handling heavy log volumes to seamlessly feeding grinders and chippers, the PowerClam Grapple offers more handling capabilities than a standard log grapple, with precision control at your fingertips.
Rugged Construction – 100QT “T1” alloy steel for maximum durability.
-
Heavy-Duty Hydraulics – 5" diameter cylinders with 22,600 ft-lb closing force.
-
Dual Rotate Drive – Longer life, higher torque, and 25,000 ft-lb rotate torque.
-
Continuous Rotation – Full 360° of continuous rotation for unmatched control.
-
Precision Control – Proportional control system allows for smooth, accurate operation.
-
Versatility – Operates on a single hydraulic circuit and includes an optional saw package for increased productivity.
-
Built for Tough Jobs – Heavy loading in any position with reliable performance in extreme conditions.
Specifications:
Machine Weight: 85,000 lbs.+
-
Attachment Weight: 8,150 lbs.
-
Cylinder Diameter: 5" / 125 mm
-
Closing Force: 22,600 ft-lb
Rotate Flow: 25 GPM
Rotate Torque: 25,000 ft-lb
Rotate Pressure: 3,700 PSI
Open/Close Pressure: 4,000 PSI
Open/Close Flow: 60–95 GPM
The Bottom Line:
The T-MAR PowerClam Grapple combines brute strength with unmatched precision. Whether you’re clearing land, loading wood, or processing debris, this grapple is purpose-built to keep you productive in the toughest forestry environments.
