MARK III EXTREME DUTY 62" 66" & 72"

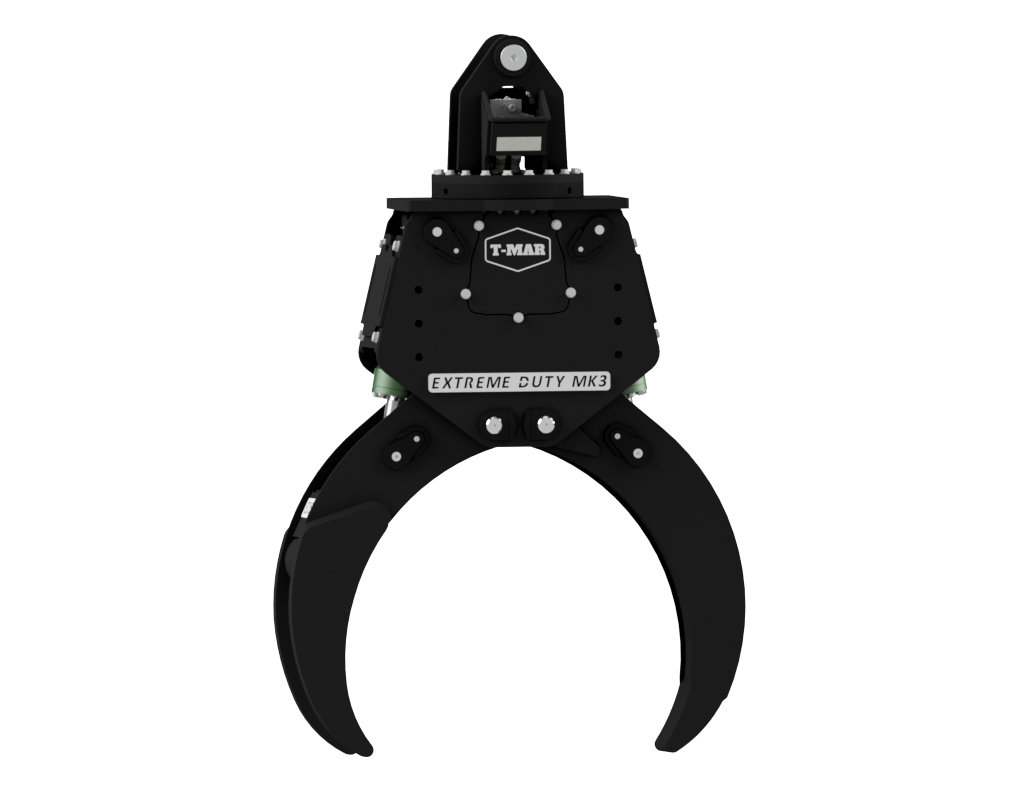

T-MAR Mark III Extreme Duty Grapple | The Ultimate Grapple for 30-Ton+ Carriers
Description: Built for the most demanding environments, the T-MAR Mark III Extreme Duty Grapple is a testament to rugged West Coast engineering. Constructed from 100QT "T1" Alloy Steel and featuring induction-hardened pins and high-strength aluminum-bronze bushings, this grapple is designed for maximum uptime and durability.
Cylinder Diameter: 5"
HIGHLIGHTS:
3 Size Options: Choose the perfect fit for your machine with the 62", 66", and 72" models.
62": 3,420 lbs.
66": 3,548 lbs.
72": 3,783 lbs.
Precision and Power: A superior design ensures strong log retention and rapid open/close functionality, perfectly suited for 30-ton and above carriers.
360 Degrees of Continuous Rotation: Experience unparalleled control and maneuverability with a full 360-degree rotation.
Built-in Protection: Fully protected 5" high-pressure cylinders and swivel, along with enhanced internal support and a solid top plate, shield vital components from damage.

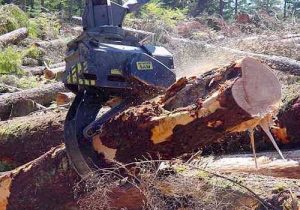

Versatile Options: Increase your productivity with the available saw option (for 66" models) and a brush rake attachment.
Specifications:
Machine Weight: 60,000 lbs. +
Grapple Weight: 3,241–3,783 lbs.
Rotate Pressure: 1,200–1,300 PSI
Rotate Flow: 8–12 GPM
Rotate Torque: 1,300 ft-lb
Open/Close Pressure: 4,000 PSI
Open/Close Flow: 60–80 GPM
